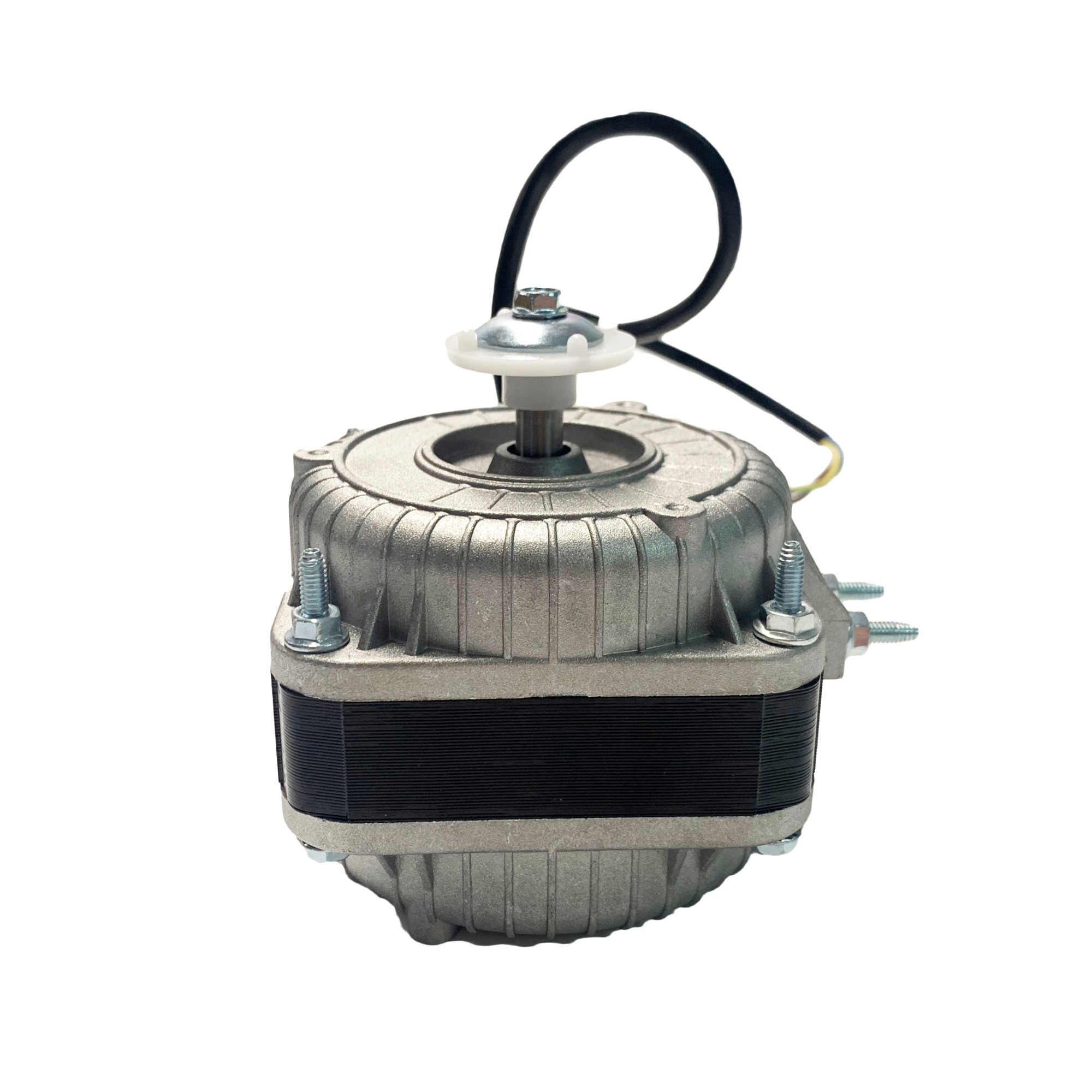

Product Description
| MODEL |
VOLTAGE (V) |
FREQUENCY (Hz) |
RATED INPUT (W) |
OUT PUT (W) |
RETED CURRENT (A) |
RATED SPEED (r/min) |
AIR VOLUME (m³/min) |
FAN BLADE (mm） |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
LICENSE |
| YZF2-13-18 |
220-240 |
50/60 |
20 |
2 |
0.14 |
1300 |
205 |
φ172 |
13 |
13.5 |
43 |
78 |
|
CE |
| YZF5-13-18 |
220-240 |
50/60 |
29 |
5 |
0.20 |
1300 |
455 |
φ200 |
13 |
13.5 |
43 |
78 |
|
CE |
| YZF6-13-18 |
110-120 |
60 |
33 |
6 |
0.55 |
1550 |
510 |
|
| YZF7-20-18 |
220-240 |
50/60 |
31 |
7 |
0.23 |
1300 |
640 |
φ230 |
19 |
14 |
43.5 |
84.5 |
|
CE |
| YZF10-20-18 |
220-240 |
50/60 |
36 |
10 |
0.25 |
1300 |
650 |
φ230 |
19 |
14 |
43.5 |
84.5 |
|
CE |
| 110-120 |
60 |
55 |
10 |
0.80 |
1550 |
800 |
|
| YZF12-20-18 |
220-240 |
50/60 |
54 |
12 |
0.36 |
1300 |
690 |
φ230 |
19 |
14 |
43.5 |
84.5 |
|
CE |
| YZF16-25-18 |
220-240 |
50/60 |
60 |
16 |
0.45 |
1300 |
760 |
φ254 |
25 |
15.5 |
45 |
92 |
|
CE |
| YZF18-25-18 |
110-120 |
60 |
70 |
18 |
1.01 |
1550 |
940 |
|
| YZF18-30-18 |
220-240 |
50/60 |
70 |
18 |
0.50 |
1300 |
1000 |
φ254 |
30 |
17.5 |
48.5 |
100.5 |
21 |
CE |
| 110-120 |
60 |
75 |
18 |
1.10 |
1450 |
|
| YZF25-40-18 |
220-240 |
50/60 |
90 |
25 |
0.70 |
1300 |
1030 |
φ300 |
40 |
18.5 |
49.5 |
111.5 |
31 |
CE |
| 110-120 |
60 |
100 |
25 |
1.40 |
1450 |
|
| YZF34-45-18 |
220-240 |
50/60 |
110 |
34 |
0.85 |
1300 |
1210 |
φ300 |
45 |
22.5 |
53.5 |
120.5 |
36 |
CE |
| 110-120 |
60 |
110 |
34 |
1.50 |
1450 |
|
YZF Summarize of products
•YZF series motors are shaded pole motors with single phase , 4 shaded poles and running at rated voltage of 220-240V , 50/60Hz Or 110~120V , 60Hz . They are widely used in the radiator, evaporator and other refrigeration equipment .
•The output power is from 2W to 34W , Which is relative to the stack length and coil parameters .
•The Insulation class of motors is B . and the protection class of that is IP42 . On request IP44 is available .
•The applicable ambient temperatuer is from -10°C~50°C .
•Because our standard motors adopt sleeve bearing . we suggest instaling these motors horizomtally . On request motors can be furnished with ball bearings .
•The average service life of motors is over 20000 hours .
•All of shaded pole motors passed CE approval .
•The series products have two design models including separated type and integral type, please indicate your requirements.
•Before operating the motor. make sure the earth wire of the motor connected with the external grounding device .
Instruction of Model
YZF 5 13 18
YZF----Space between the two screws
5-----Thickness of laminated core
13----Model code
13----Shaded pole motors with single phase and alternating current

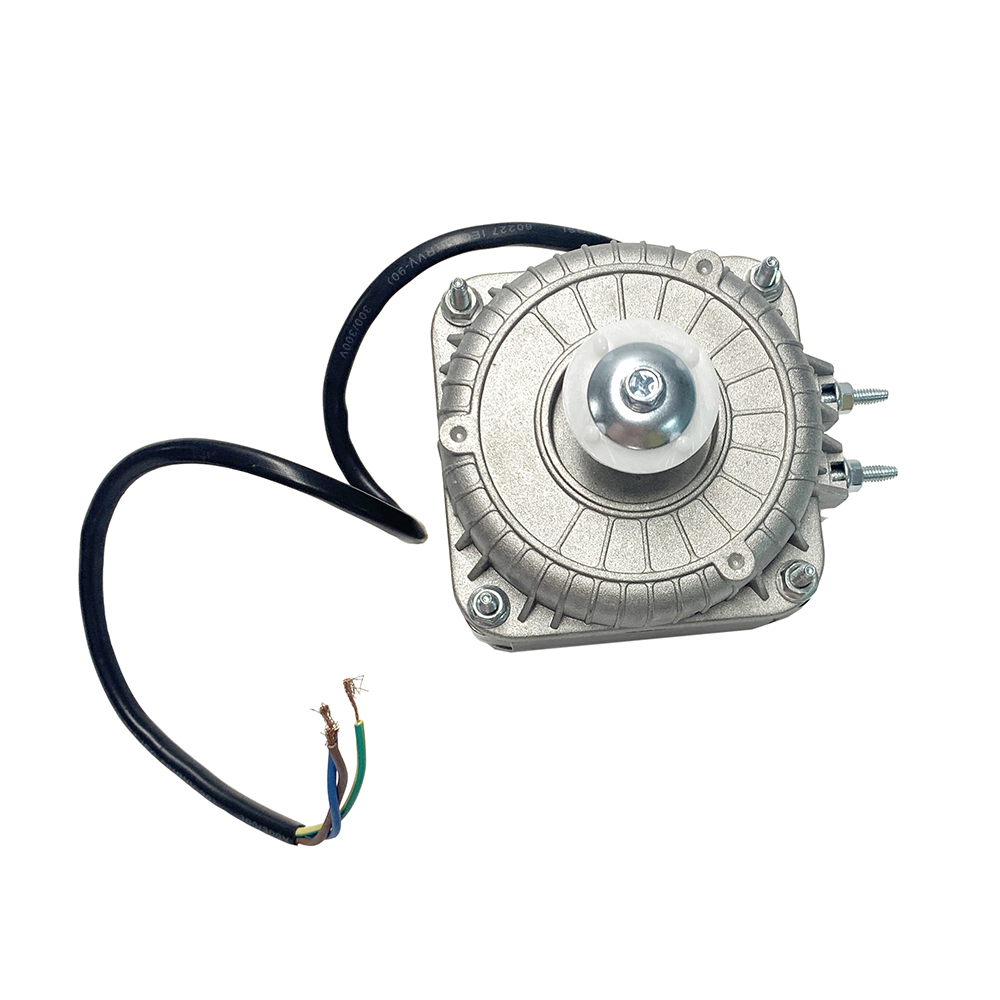

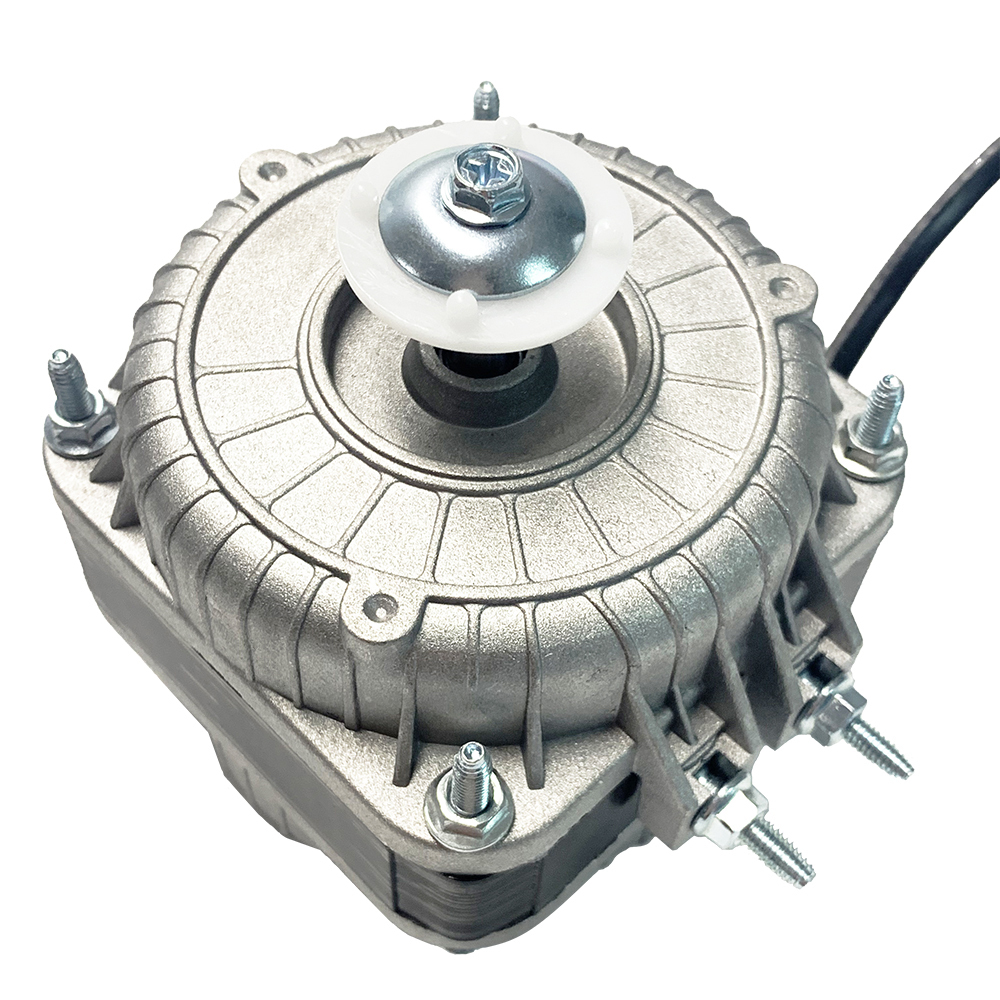

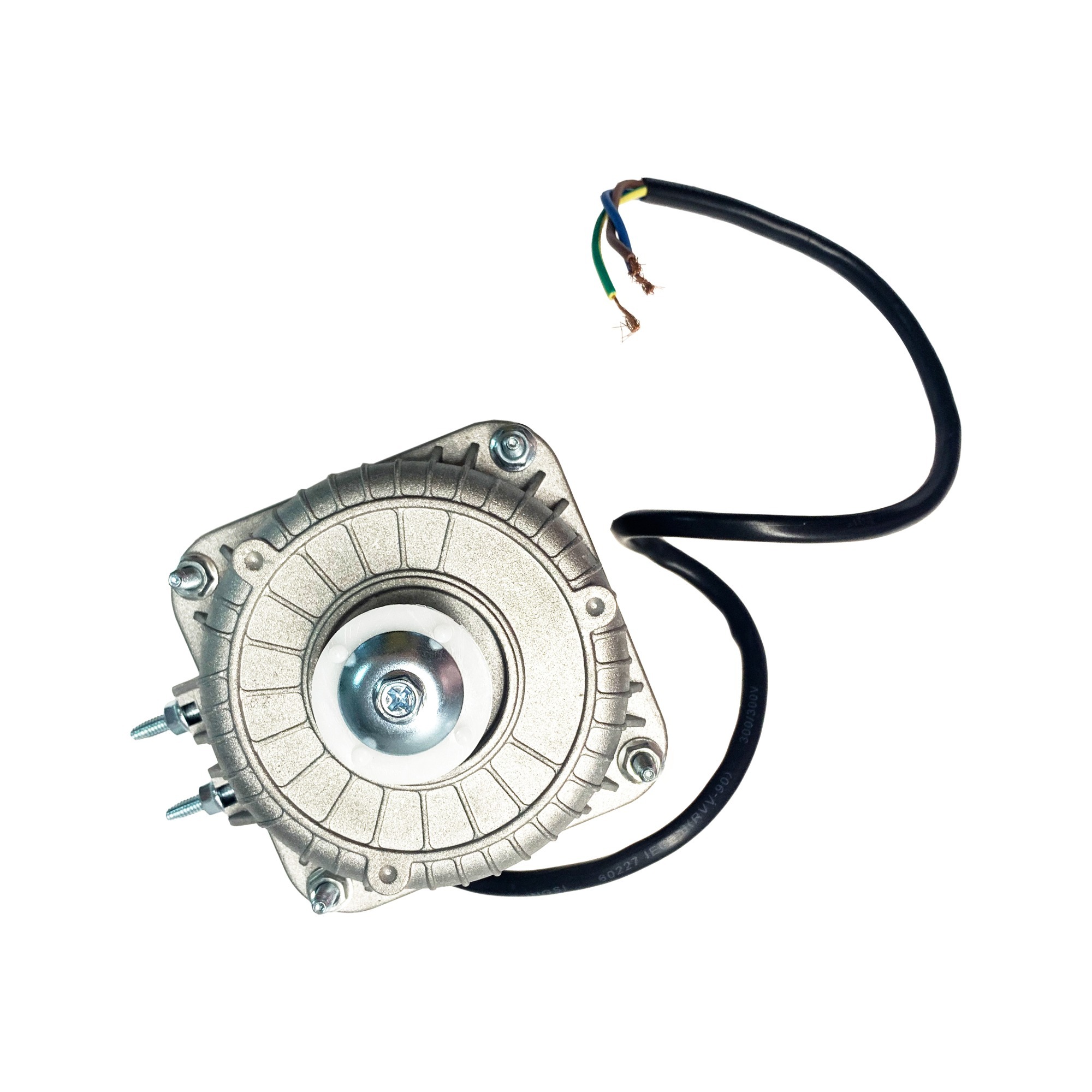

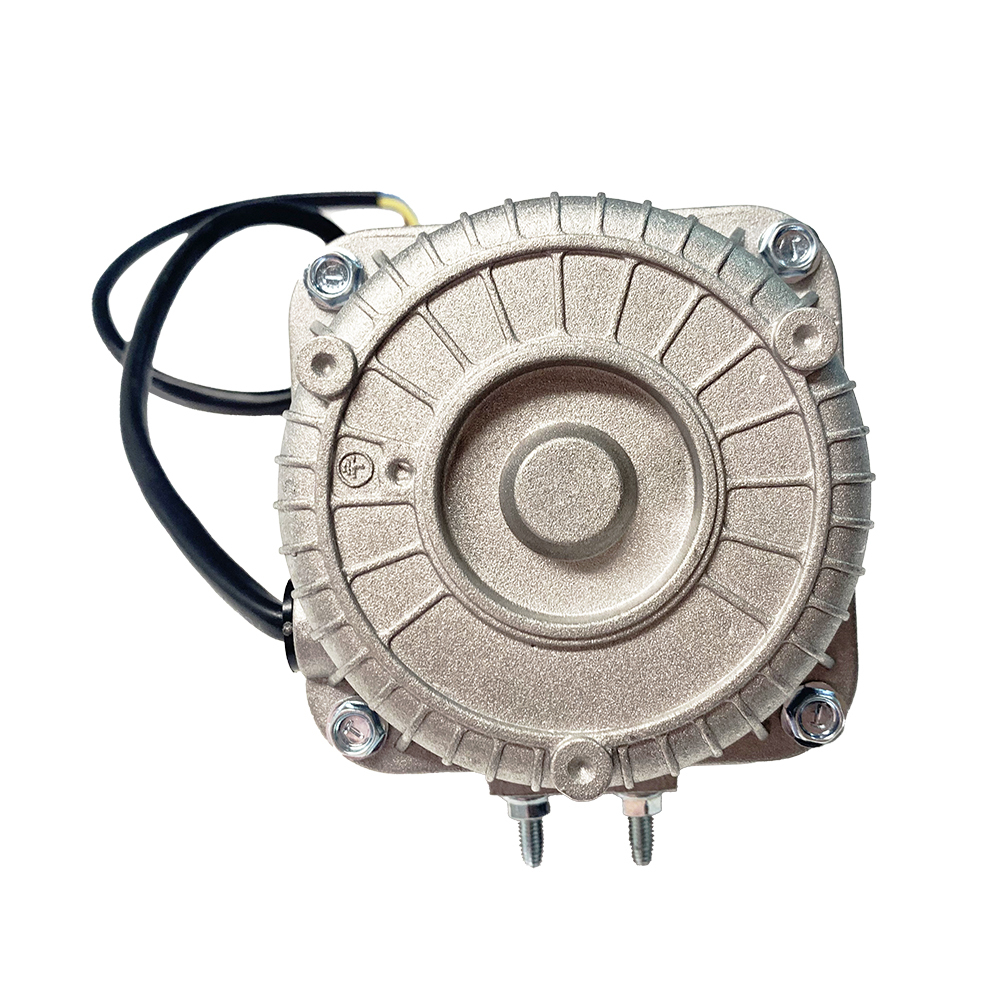

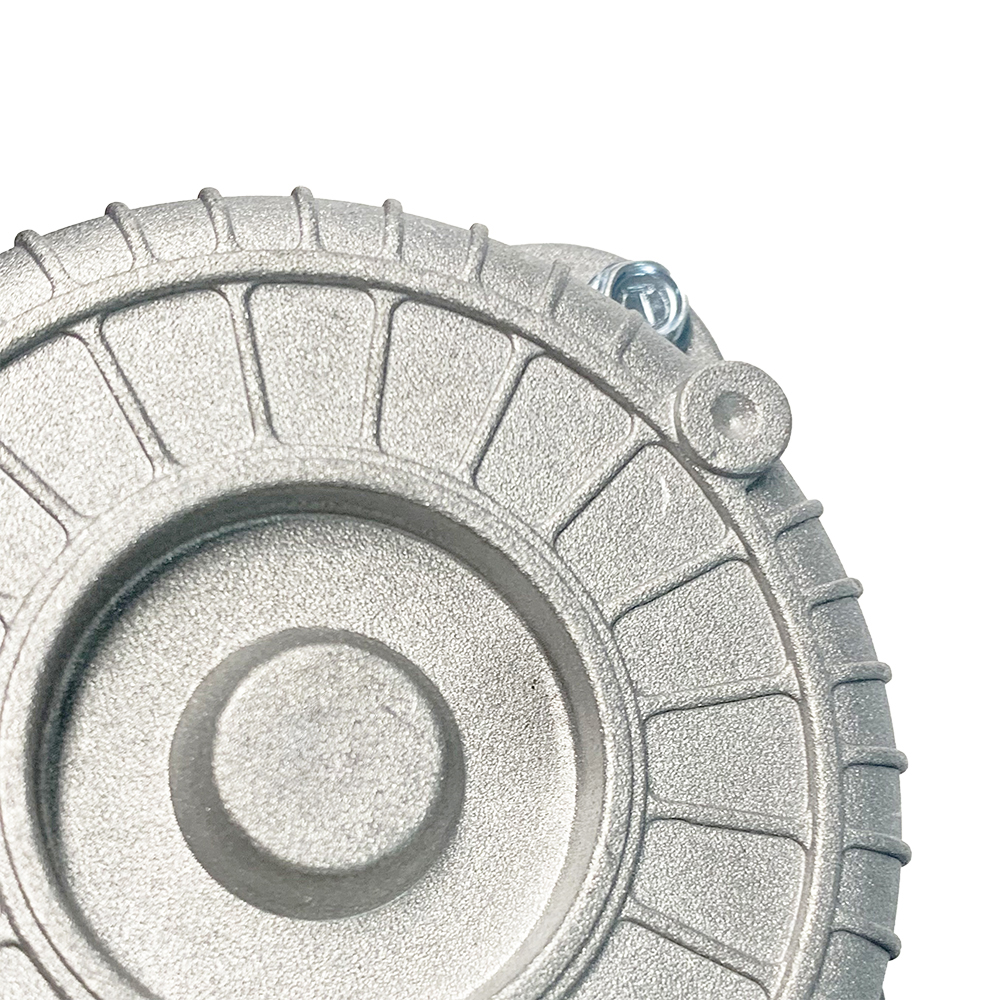

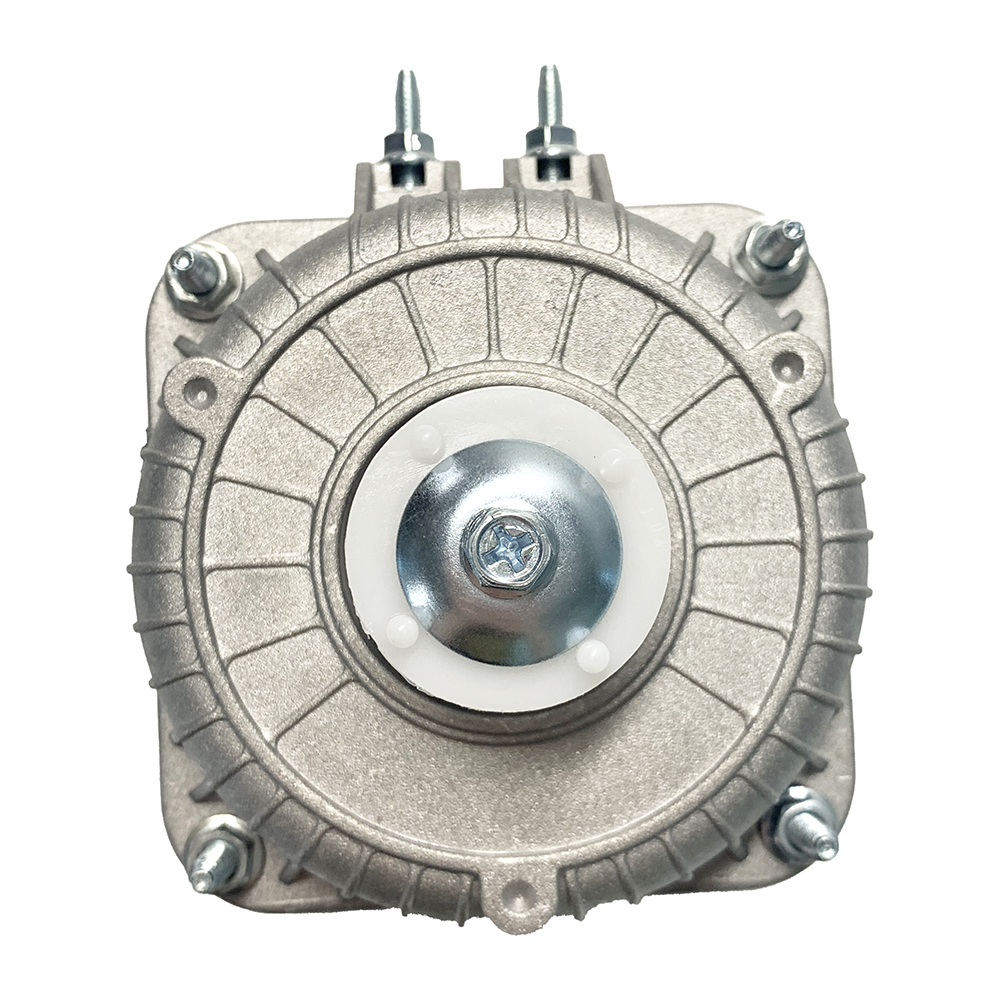

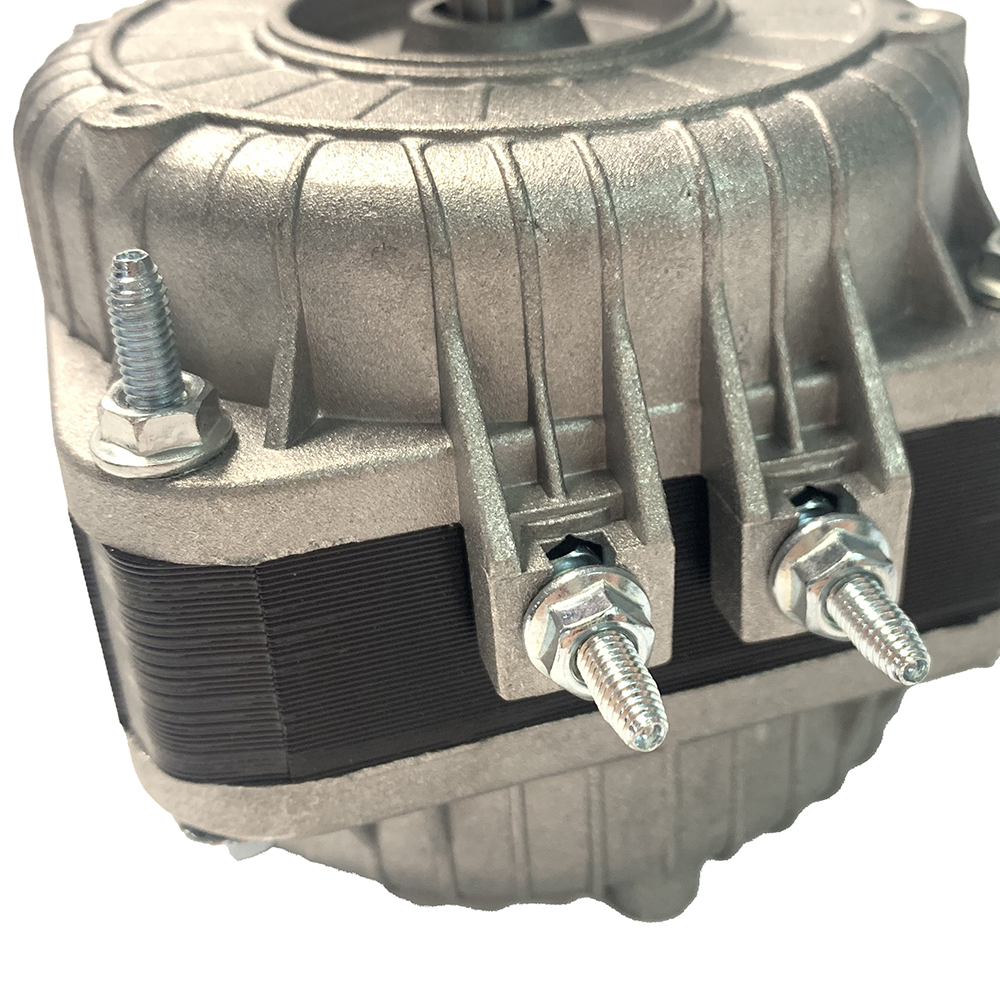

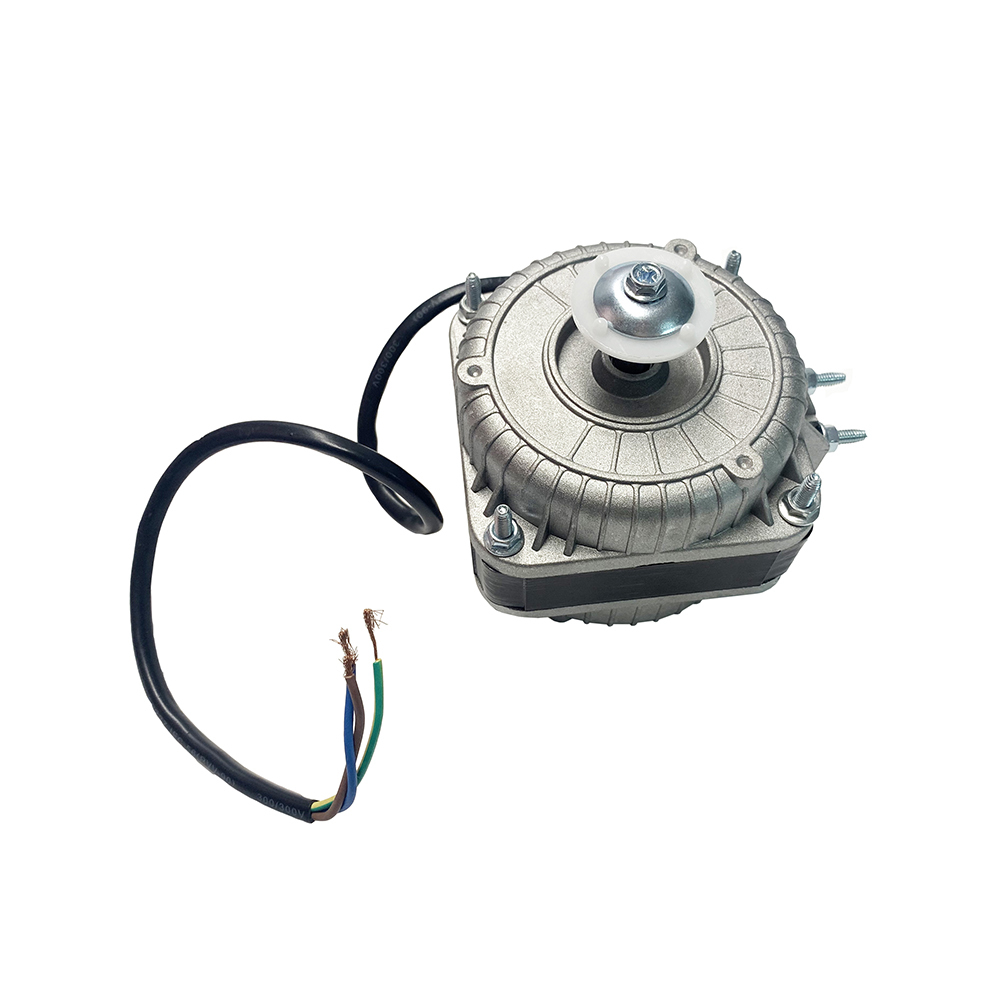

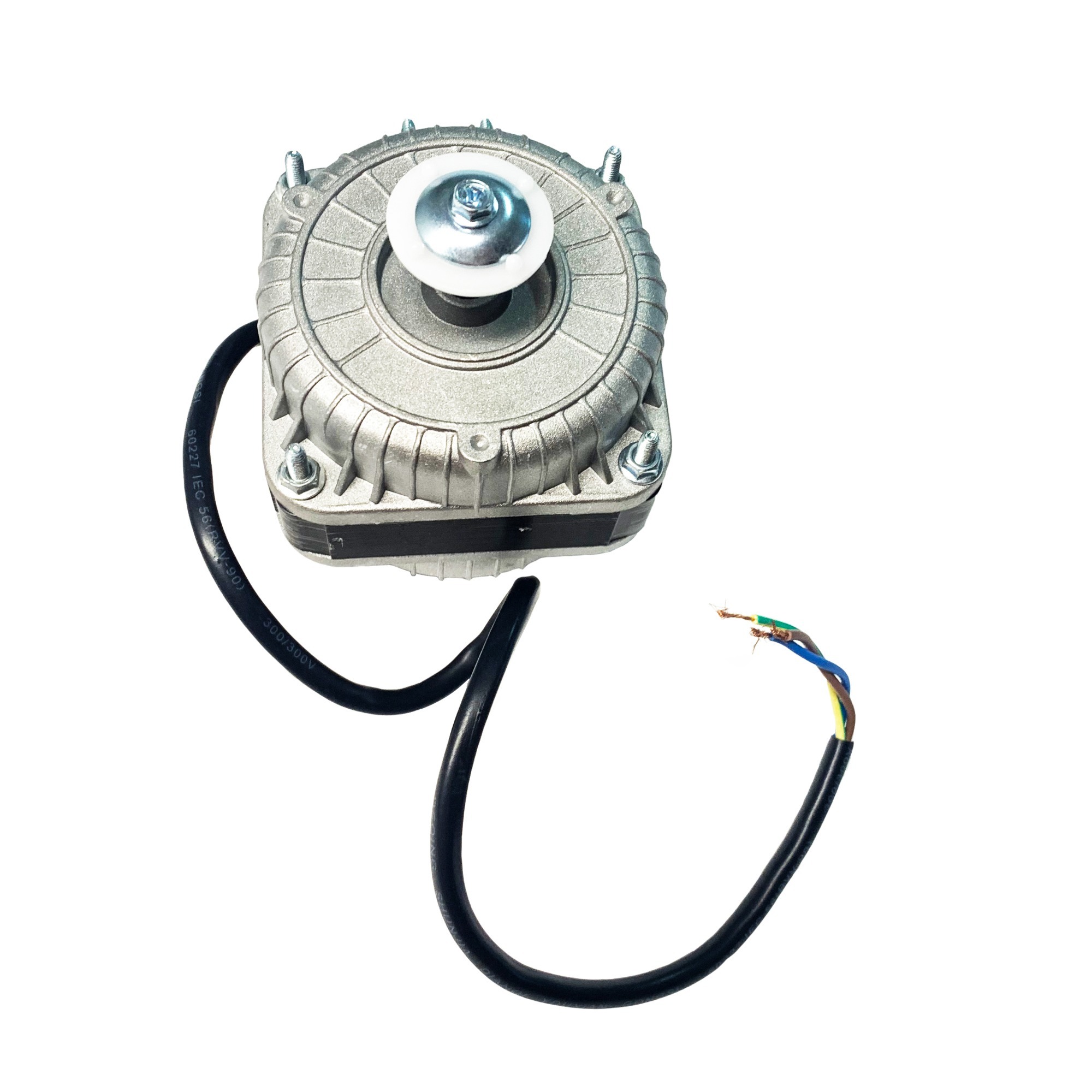

Detailed Photos
